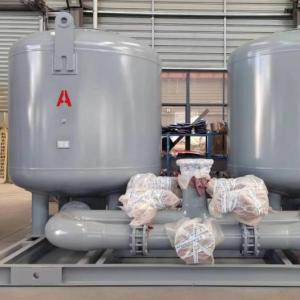

VPSA Oxygen Generator adopts the principle of pressure swing adsorption, and zeolite molecular sieve is used as the adsorbent. Due to the selective adsorption characteristics of zeolite molecular sieve, nitrogen is adsorbed in large quantities by zeolite molecular sieve, while oxygen is enriched in the gas phase, thus achieving nitrogen-oxygen separation under the action of pressure swing adsorption. It adopts a two-adsorption-tower process: one tower adsorbs oxygen, and the other tower performs desorption and regeneration under negative pressure. The opening and closing of the pneumatic valve are controlled by the PLC intelligent program, so that the two towers cycle alternately and continuously produce high-quality oxygen.
| Modelspecification | HL-200 | HL-300 | HL-400 | HL-500 | HL-600 | HL-800 | HL-1000 |
| Gas production Nm³/h | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
| Voltage | 380v | 380v | 380v | 380v | 380v | 10kv | 10kv |
| Installed power KW | 120 | 165 | 200 | 270 | 317 | 380 | 450 |
| Valve gas consumption m³/min | 0.5 | 0.7 | 0.9 | 1.1 | 1.4 | 1.6 | 2.0 |
| Cooling water circulation m³/h | 11 | 15 | 20 | 26 | 30 | 38 | 55 |
| Soft water consumption m³/h | 1.2 | 1.8 | 1.98 | 2.1 | 2.1 | 2.4 | 2.7 |
| Modelspecification | HL-1200 | HL-1600 | HL-2000 | HL-3000 | HL-3600 | HL-4500 | HL-5500 |
| Gas production Nm³/h | 1200 | 1600 | 2000 | 3000 | 3600 | 4500 | 5500 |
| Voltage | 10kv | 10kv | 10kv | 10kv | 10kv | 10kv | 10kv |
| Installed power KW | 565 | 715 | 1000 | 1250 | 1600 | 2000 | 2500 |
| Valve gas consumption m³/min | 2.0 | 2.4 | 3.0 | 3.3 | 4.2 | 5.5 | 6.5 |
| Cooling water circulation m³/h | 62 | 90 | 100 | 110 | 120 | 130 | 140 |
| Soft water consumption m³/h | 2.7 | 2.88 | 3.3 | 3.6 | 4.2 | 4.5 | 4.8 |
1. The purification equipment uses carbon supported catalyst, no hydrogen source is required.and the operation is safe and easy
2. Double tower switch, can be replaced without stopping dehydration desiccant or major overhaul;
3. High quality carbon-supported catalyst, greatly extending the catalyst replacement cycle; The gas production of the equipment is safe and stable, and the purity of nitrogen can be kept above 99.9995% for a long time
4. Automatic control drying tower, adsorber switching can be automatically switched by PLC according to the set time, eliminating manual switching may cause misoperation
